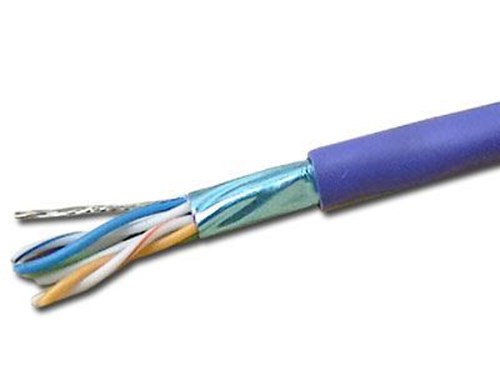

Our Computer Cable Store Shielded DataMax Cat5e Cable - Stranded, ScTP, Purple PVC - 1000 FT Has a 26 AWG stranded, low loss foam insulation, overall shield, blue PVC jacket. For TIA/EIA 568B ScTP Category 5e, ISO 11801, and EN 50173 class D shielded patch/jumper applications.
Listing and Ratings Electricals (NOM) Cond. DC Resistance: 43.0 Ohms/Kft (141.0 Ohms/Km) max
Cond. to Cond. Capacity: 13.0 pF/ft (42.6 pF/meter)
Cond. to Shield Capacity: N/A
Impedance: 100 Ohms
Velocity of Propagation: N/A
- NEC and CEC type CM
- ETL verified to Category 5e
