Description

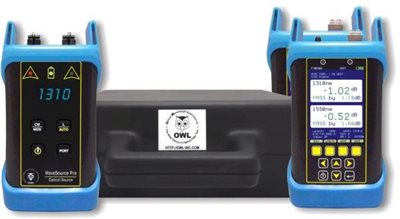

Fiber OWL7+ certification test kits include a Tier 2 certification meter and light source that enable fiber optic professionals to perform a wide range of tests, from basic optical power/loss measurement all the way up to full-featured Tier 2 certification (PASS/FAIL and OTDR trace results) for their clients. Models are available that can test multimode only, singlemode only, or both multimode and singlemode. Optional accessories such as OTDR fiber rings and video inspection microscopes are also available to take full advantage of Tier 2 certification capability. Fiber OWL 7+ certification power meter. Test readings and graphical help screens can be easily viewed on the color LCD, and an intuitive 10-key keypad allows for easy data entry. The intuitive built-in Link Wizard prompts the user to enter key information used to calculate standards-based link budgets for fiber optic certification testing, and helpful diagrams guide the user through the setup and testing procedure. Thousands of data points with descriptive link and fiber run labels can be stored in internal memory. Stored information can be selectively viewed, re-tested, or deleted from the device. WaveSource Pro fiber optic light source. An intuitive 4-button keypad controls key functions such as port and wavelength selection, and a 7-segment LED displays the currently selected wavelength. Both the meter and source are enclosed in attractive hand-held cases made from high impact plastic and protected by a protective rubber boot, and are powered by re-chargeable lithium polymer batteries which are re-charged through a USB port via a supplied battery charger and cable. Following is a short description for each of the functions that can be performed with these devices, which will be covered in more detail later in this manual.
