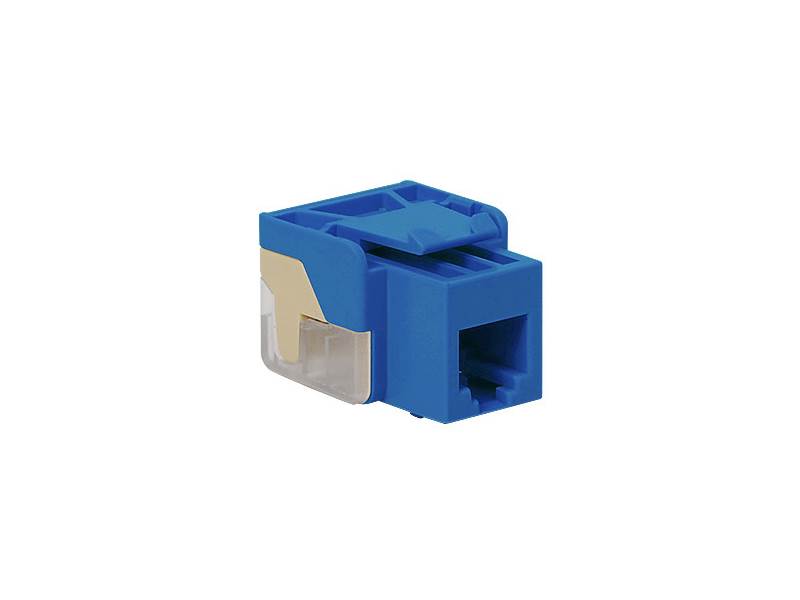

The voice modular connector, RJ-11 keystone jack 6-position 6-conductor (6P6C), is designed for business system applications. The connector utilizes IDC termination, accepts 22-24 AWG solid wire. Termination can be done using 110 punch down tools, or by using the termination cap for fast and easy termination. For use with applications: Apple Talk, Voice, and Arcnet
1. RJ-11 Voice Module:A. Electrical:Current rating: 1.5 amps max.Voltage rating: 150 volts alternatingDielectric withstanding voltage: 1000 volts rms, 60HzInsulation resistance: >10 mohmsB. Mechanical:Mated force: 5 lbs max.Unmated force: 5 lbs max.Plug retention force: 20 lbs min.Durability: 750 cyclesC. Physicals:Housing: ABS, UL 94V-0Contact: Phosphor bronze gold plating over 100 inches of nickelGold plating: 1.27 micron/50 micro inch min.Connector: insulation displacement connector (IDC) accepts 22~24 AWG solid wireD: Colors:XX: AL-Almond, BK-Black, BL-Blue, GN-Green, GY-Gray, IV-Ivory, OR-Orange, PR-Purple, RD-Red, WH-White, YL-Yellow2. Termination cap:A. Material: PC, UL 94V-0B. Color: Light gray
- Designed for all voice connectivity applications
- Lead frame technology provides maximum performance and superior signal quality
- Engineered to provide 110 IDC termination reducing installation time
- Terminate with 110 punch down tool ICACSPDT00
- One piece termination cap allows for a quick and easy termination
- Includes an integrated USOC/UTP color wiring diagram
- Compatible with all ICC faceplates, Decorex inserts, surface mount boxes, and blank patch panels
- Works with ICC telephone line cords
- Installation instructions included
- UL listed
