OWL

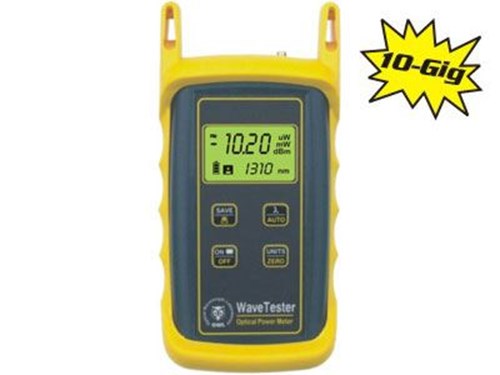

WaveTester Optical Power Meter

SKU: WT-1

$495.00

OWL Beaming Optical Length Tester, Tone Generator from Computer Cable Store is a highly accurate hand-held optical power meter, capable of performing a wide range of functions from simple optical power and loss measurements to standards-based link certification... read more

Description

The WaveTester is one of the world's most economical and accurate fiber optic link certification power meters delivering professional performance and a complete feature set for optical loss testing in both multimode and/or singlemode networks.

The WaveTester is offered in two models. The WT-1 is N.I.S.T. Traceable at four commonly used industry standard wavelengths (850, 1300, 1310, and 1550), as well as 1490nm for FTTH testing. This makes it an ideal choice for both multimode and singlemode testing.

Each model of the WaveTester can store reference values for all of its calibrated wavelengths, and displays optical power as an absolute value in dBm or relative to a user set "zero" reference in dB. Stored data points contain this reference information, and when data is downloaded into our free OWL Reporter software, the data can be certified using one of many popular cabling standards. OWL Reporter can also print professional-looking certification reports as proof to customers of a job well done. OWL Reporter data can also be saved to hard disk for later retrieval.

Other standard features include a backlit, easy-to-read LCD display and a 2.5mm universal detector port that is compatible with FC, ST, SC, DIN, and any other 2.5 mm ferrule connectors! No need to maintain expensive adapter caps! The WaveTester is protected from shock and droppage by an attractive rugged rubber boot.

  • 19 inch EIA 310-D  compliant mounting
  • #10-32 threaded mounting holes
  • 3 position adjustable rails
  • Keyed wall mounting holes (16" centers) for left, right, or vertical equipment orientation
  • Removable cover
  • All steel construction
  • Durable black texture powder coat finish
  • Vented
  • Dimensions:  7.5"H x 19.75"W x 21.63"D
  • Weight Capacity: 75 lbs.

Products specifications

Manufacturer Optical Wavelength Laboratories, Inc.
Color Yellow
Accuracy ±0.15 dB
Auto-Shutdown Yes
Battery Life 250 hours (9V)
Calibrated Wavelengths 850, 1300, 1310, 1490, 1550
Connector Type 2.5mm/1.25mm universal
Detector Type InGaAs
Dimensions 2.75 x 4.94 x 1.28 inches (69.85 x 125.48 x 32.51 mm)
Display Resolution 0.01 dB
Display Type LCD
Displayed Measurement Units dBm, dB, mW, μW
Operating Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperature -30°C to 70°C (-22°F to 158 °F)
Visual Fault Locator (VFL) Not Included
SKU WT-1
Weight (Lbs) 1.00
