It connects an XLR-equipped device, such as a mixer, camera audio input, or wireless mic receiver, to equipment using a 3.5mm connector, such as a smartphone, camera, or PC sound card.
Was this helpful?Thanks for your feedback.
What's the difference between the Mono and Stereo XLR to 3.5mm versions?
Both carry a single XLR audio channel, since a standard XLR connector only carries one channel. The Mono version outputs that signal on a 3.5mm mono (TS) plug. The Stereo versions use a 3.5mm stereo (TRS) plug, typically duplicating the same signal to both the left and right channels rather than providing true two-channel stereo.
Was this helpful?Thanks for your feedback.
What does the Right Angle version of the XLR to 3.5mm cable offer?
The right angle XLR Female to 3.5mm Stereo cable uses a 90-degree 3.5mm plug, which reduces strain on the port and cable in tight spaces, such as plugging directly into a camera or recorder.
Was this helpful?Thanks for your feedback.

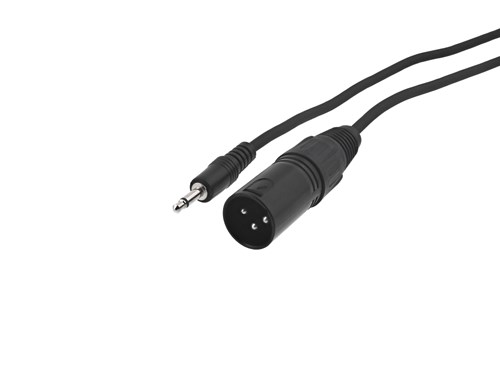

What connectors does the XLR to 3.5mm cable use?
XLR (Male or Female) on one end, 3.5mm Male plug on the other (straight or right-angle).
Was this helpful?Thanks for your feedback.
What lengths are available for the XLR to 3.5mm cable?
XLR Female to 3.5mm Stereo: 1 and 6 FT (plus a 1 FT right-angle version). XLR Male to 3.5mm Mono: 6 FT. XLR Male to 3.5mm Stereo: 6 FT.
