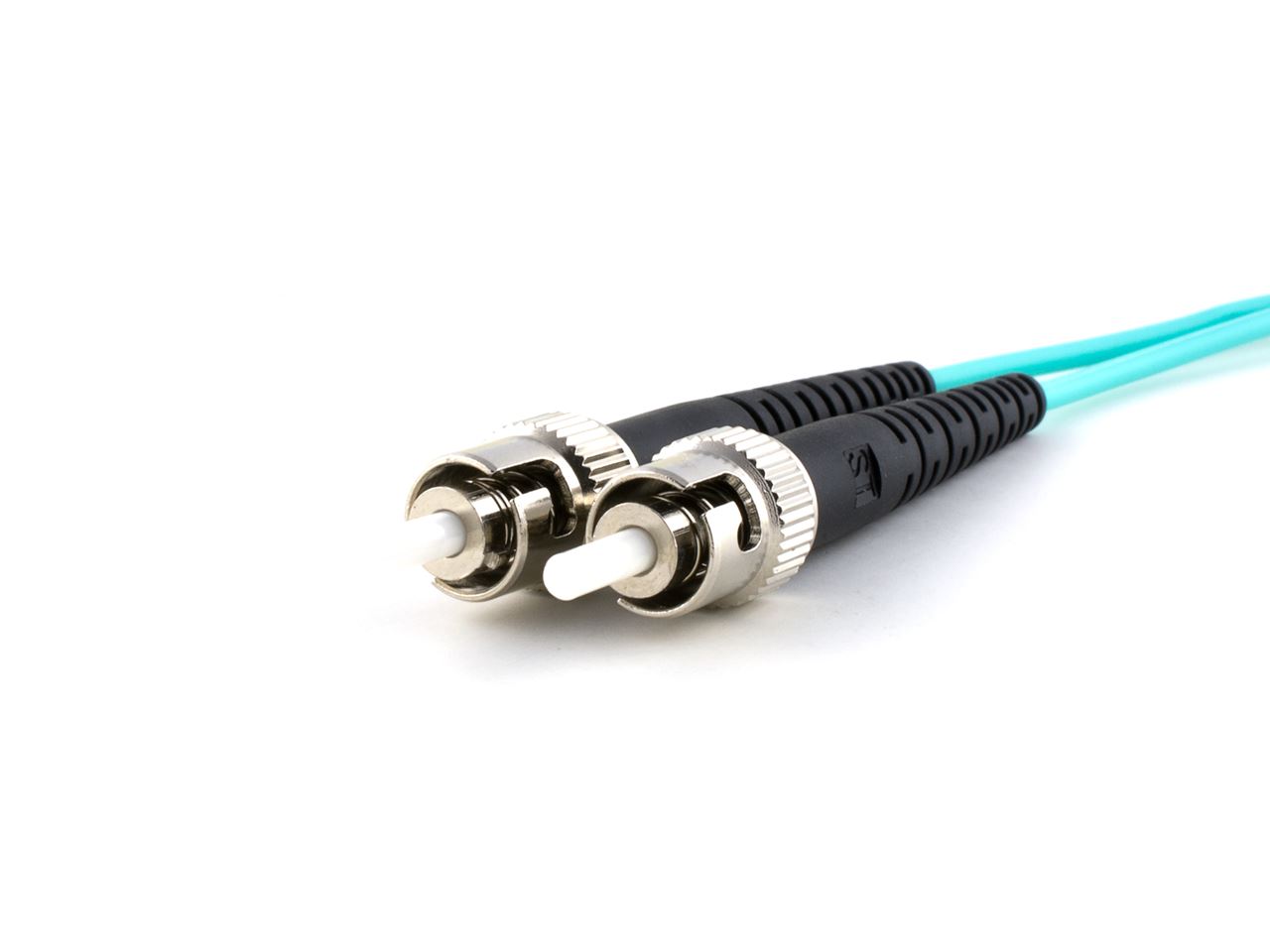

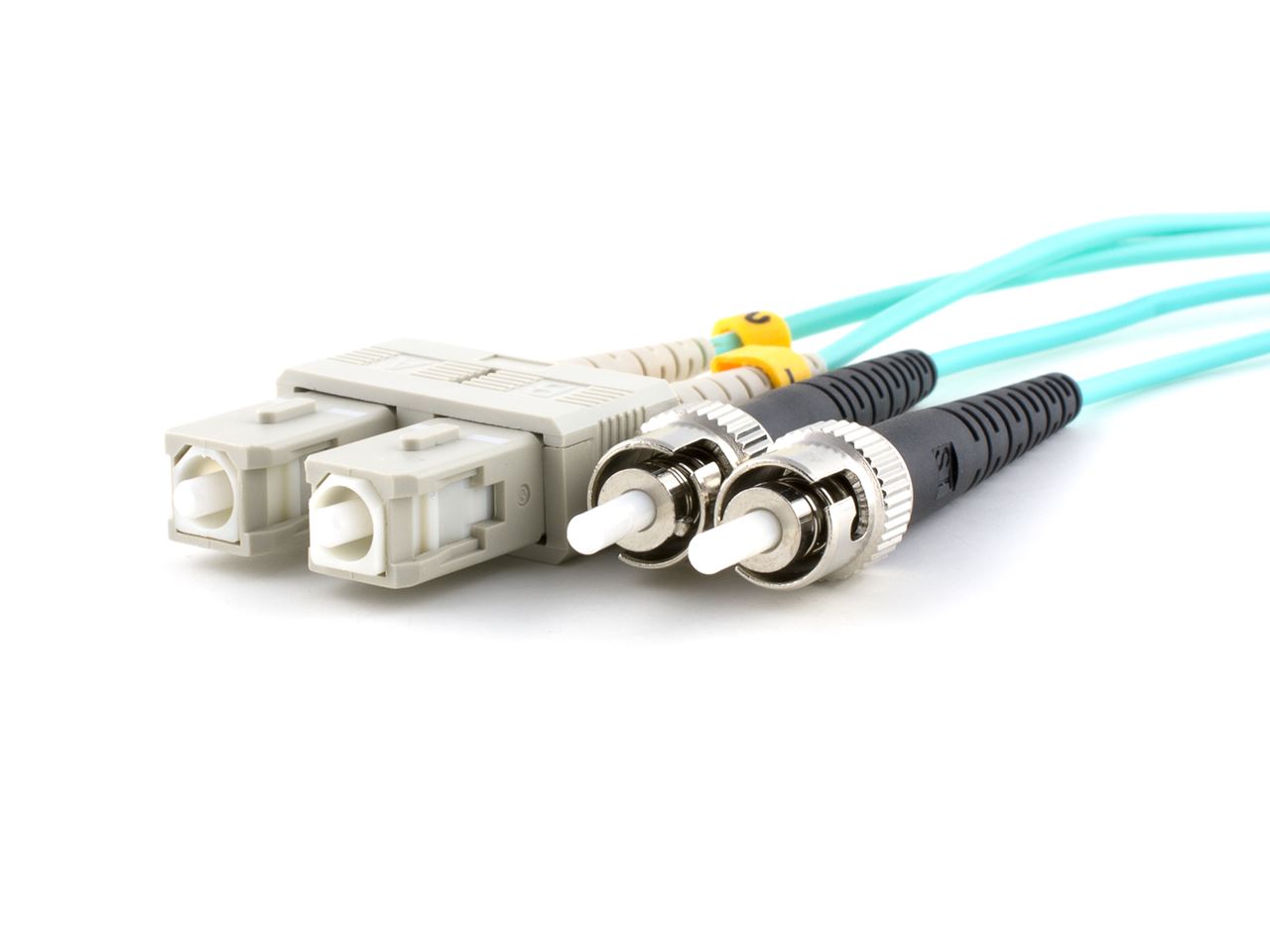

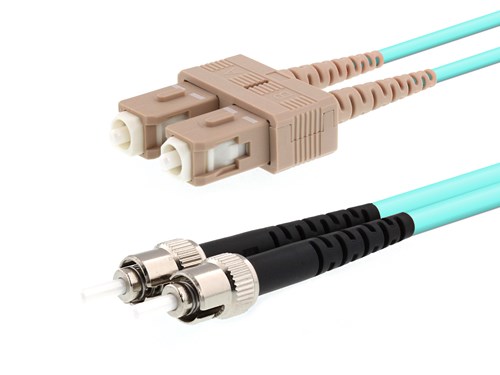

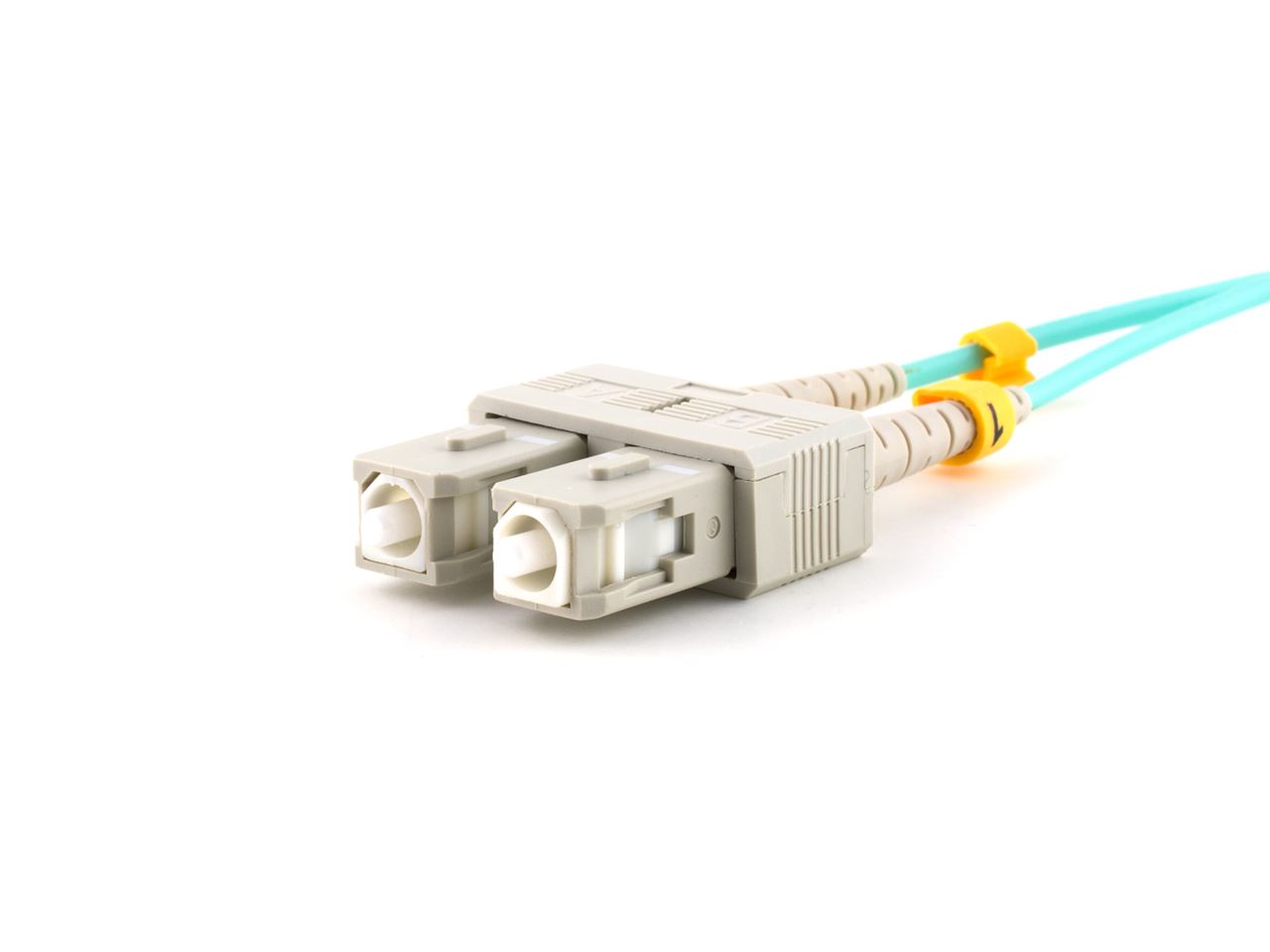

Networx® top quality 5m Multimode Duplex Fiber Optic Patch Cable (50/125) OM3 Aqua - Laser Opt - SC to ST, high-speed Multi-mode Optical Fiber cables will unleash the power of your Local Area Network. With ceramic ferrules and a 50/125 micron core, this cable is suitable for extremely high speed data transmissions such that you would find in 10 Gigabit Ethernet (10 Gb/s) networks. This 10 Gig fiber is OM3 Laser-Optimized. Each jumper cable is constructed using Genuine Corning Glass and shipped in individually sealed bags to ensure they arrive in perfect condition. Test results for the individual patch cable will be included in each bag. Color coded connectors assist with identification during the installation process to make installation easy for anyone.
- Optical multimode 3 (OM3) compliant for 10-Gigabit Ethernet support
- Core Diameter: 50/125 micron
- Insertion loss: typically 0.30 dB
- Return loss: >20dB
- Vertical Cavity Surface Emitting Laser (VCSEL) optimized
- Ceramic Ferrules for increased durability
- FOCIS-3 TIA/EIA-568-B.3 compliant
- Connectors: (SC/UPC) Molded body with push-pull locking (snap-in); (ST/UPC) Bayonet twist-locking system
- Used primarily for high speed data communications such as 10 Gigabit Ethernet
- Ultra Physical Contact (UPC) Polished Fiber
- Built with Corning Glass
